Guide 引导 ​

介绍 ​

用于分步引导用户了解产品功能的气泡组件，用来引导用户并介绍产品。

引入 ​

ts
import { IBestGuide } from "@ibestservices/ibest-ui";

代码演示 ​

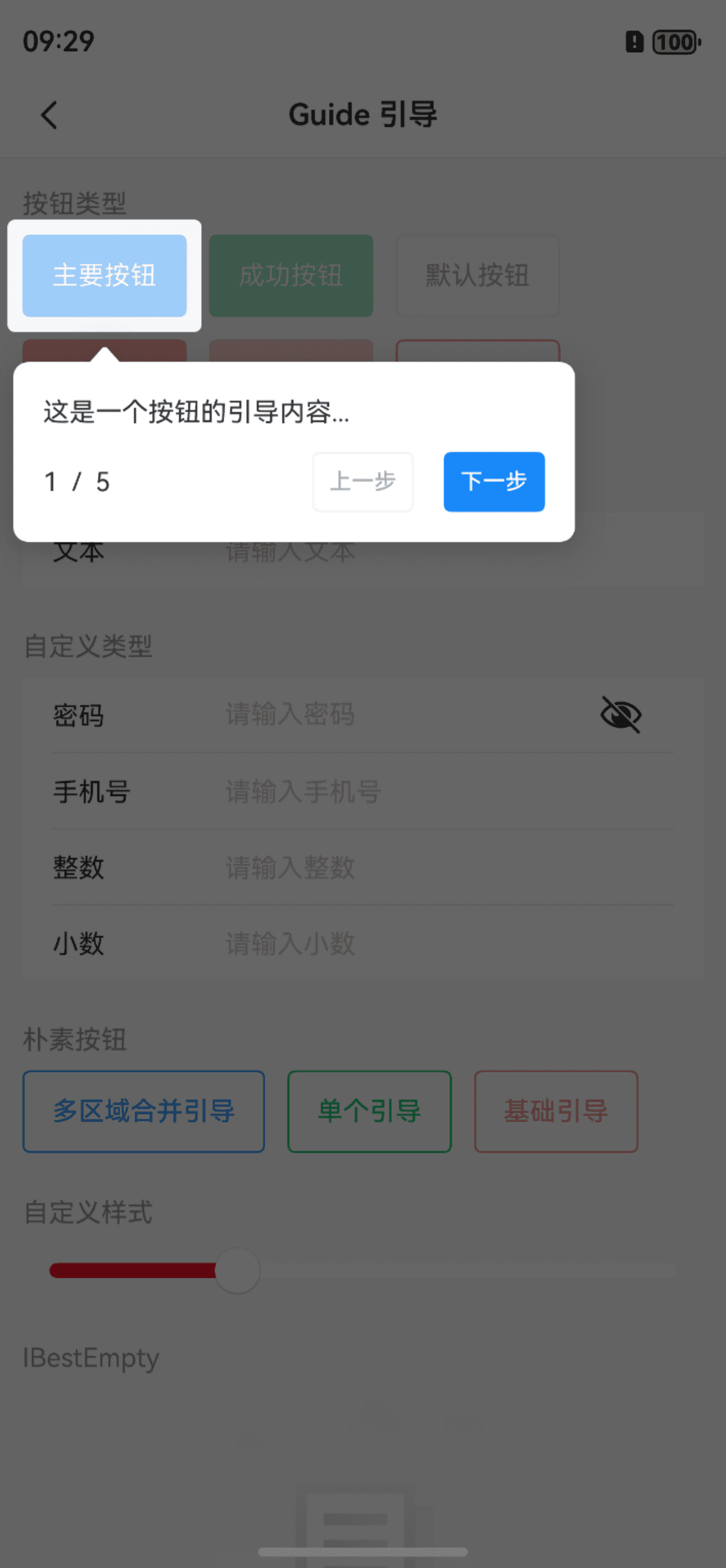

基础用法 ​

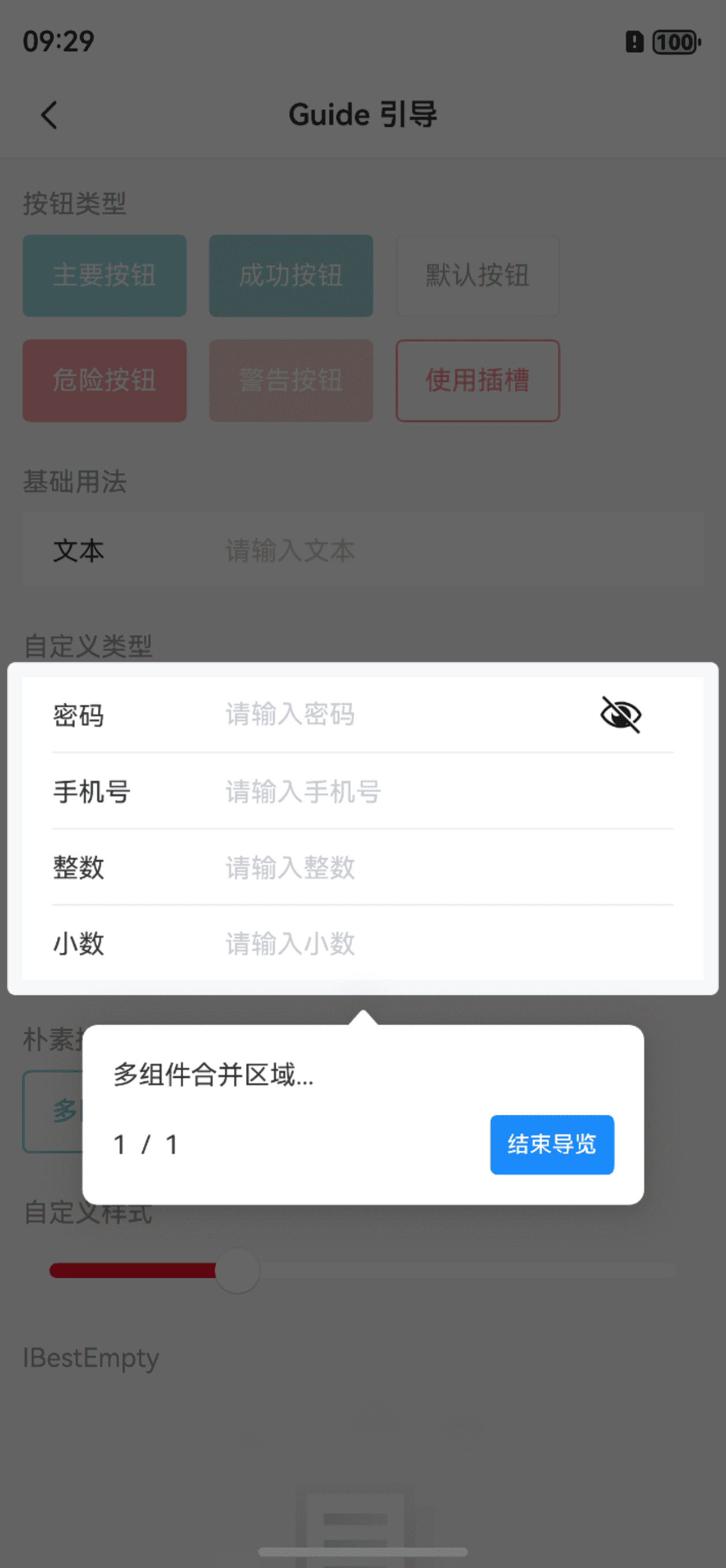

基础用法多组件合并区域
点我查看代码
ts
@Builder function demo(sort: number, total: number, ctl: IBestGuideController) {
  Scroll() {
    Column() {
      Text("这是一个自定义插槽，随便写点什么...")
        .width("100%")
        .padding(12)
        .textAlign(TextAlign.Start)
        .fontColor(Color.Red)
      Row({ space: 16 }) {
        Row({ space: 16 }) {
          Text("第" + sort + "个，共" + total + "个")
            .letterSpacing(2)
            .fontSize(12)
            .fontColor(Color.Green)
        }
        Blank()
        Row({ space: SPACE.LG }) {
          IBestButton({
            text: '上一步',
            type: 'warning',
            buttonSize: 'small',
            fontWeight: FontWeight.Medium,
            onBtnClick: () => {
              if (sort > 1) {
                ctl.prev()
              }
            },
            disabled: sort == 1
          })
          IBestButton({
            text: sort == total ? "结束导览" : "下一步",
            type: 'primary',
            buttonSize: 'small',
            fontWeight: FontWeight.Medium,
            onBtnClick: () => {
              if (sort == total) {
                ctl.close()
              } else {
                ctl.next()
              }
            }
          })
        }
      }
      .padding({ left: 12, right: 12 })
    }
    .padding(12)
  }
  .scrollBar(BarState.Auto)
  .height("auto")
  .constraintSize({ maxHeight: "auto" })
}
@Entry
@Component
struct DemoPage {
  @State value: string = ""
  @State value1: string = ""
  @State value2: string = ""
  @State value3: string = ""
  @State value4: string = ""
  @State value5: number = 30
  @State controller: IBestGuideController = new IBestGuideController()
  @State guideData: Array<IBestGuideItemType> = []
  build() {
    NavDestination() {
      IBestGuide({
        data: this.guideData,
        controller: this.controller
      }) {
        // 以下为页面内容
        CustomNavBar({ title: this.title })
        List() {
          ListItem() {
            ComponentShowContainer({ title: $r("app.string.custom_type", $r("app.string.button")) }) {
              Flex({
                wrap: FlexWrap.Wrap,
                space: { main: LengthMetrics.vp(12), cross: LengthMetrics.vp(12) }
              }) {
                IBestButton({
                  text: $r("app.string.custom_button", $r("app.string.primary")),
                  type: 'primary',
                  disabled: true
                }).id('ibest_guide_button_1')
                IBestButton({
                  text: $r("app.string.custom_button", $r("app.string.success")),
                  type: 'success',
                  disabled: true
                })
                IBestButton({
                  text: $r("app.string.custom_button", $r("app.string.default")),
                  type: 'default',
                  disabled: true
                })
                IBestButton({
                  text: $r("app.string.custom_button", $r("app.string.danger")),
                  type: 'danger',
                  disabled: true
                })
                IBestButton({
                  text: $r("app.string.custom_button", $r("app.string.warning")),
                  type: 'warning',
                  disabled: true
                })
                IBestButton({
                  text: $r('app.string.guid_mixed_use_slots'),
                  plain: true,
                  type: 'warning',
                  onBtnClick: () => {
                    this.guideData = [
                      {
                        componentId: 'ibest_guide_button_1',
                        content: "这是一个按钮的引导内容..."
                      },
                      {
                        componentId: 'ibest_guide_field',
                        content: "这是一个输入框的引导内容..."
                      },
                      {
                        componentId: 'ibest_guide_button_2',
                        content: "这是一个按钮的引导内容..."
                      },
                      {
                        componentId: 'ibest_guide_button_3',
                        content: wrapBuilder(demo),
                        placement: Placement.Top
                      },
                      {
                        componentId: 'ibest_guide_slider',
                        content: "一个滑块??"
                      }
                    ]
                    this.controller.start()
                  }
                })
              }
            }
          }

          ListItem() {
            ComponentShowContainer({ title: '基础用法' }) {
              IBestField({
                value: $value,
                label: "文本",
                placeholder: "请输入文本",
                hasBorder: false
              }).id('ibest_guide_field')
            }
          }

          ListItem() {
            ComponentShowContainer({ title: '自定义类型' }) {
              // 密码
              IBestField({
                value: $value1,
                label: "密码",
                placeholder: "请输入密码",
                type: "password"
              }).id('ibest_guide_form_1')
              // 手机号
              IBestField({
                value: $value2,
                label: "手机号",
                placeholder: "请输入手机号",
                type: "phone"
              })
              // 整数数字
              IBestField({
                value: $value3,
                label: "整数",
                placeholder: "请输入整数",
                type: "number"
              })
              // 小数
              IBestField({
                value: $value4,
                label: "小数",
                hasBorder: false,
                placeholder: "请输入小数",
                type: "decimal",
                decimalLength: 2
              }).id('ibest_guide_form_2')
            }
          }

          ListItem() {
            ComponentShowContainer({ title: $r("app.string.custom_button", $r("app.string.plain")) }) {
              Row({ space: 12 }) {
                IBestButton({
                  text: $r('app.string.guid_merge_rects'),
                  type: 'primary',
                  plain: true,
                  onBtnClick: () => {
                    this.guideData = [
                      {
                        componentId: ['ibest_guide_form_1', 'ibest_guide_form_2'],
                        content: "多组件合并区域..."
                      }
                    ]
                    this.controller.start()
                  }
                }).id('ibest_guide_button_2')
                IBestButton({
                  text: $r('app.string.guid_use_single'),
                  plain: true,
                  type: 'success',
                  onBtnClick: () => {
                    this.guideData = [
                      {
                        componentId: 'ibest_guide_button_1',
                        content: "这是单个引导内容..."
                      }
                    ]
                    this.controller.start()
                  }
                }).id('ibest_guide_button_3')
                IBestButton({
                  text: $r('app.string.guid_basic_usage'),
                  plain: true,
                  type: 'warning',
                  onBtnClick: () => {
                    this.guideData = [
                      {
                        componentId: 'ibest_guide_button_2',
                        content: "这是一个按钮的引导内容..."
                      },
                      {
                        componentId: 'ibest_guide_button_3',
                        content: "这是另一个按钮的引导内容..."
                      }
                    ]
                    this.controller.start()
                  }
                })
              }
            }
          }

          ListItem() {
            ComponentShowContainer({ title: '自定义样式' }) {
              IBestSlider({
                value: $value5,
                barHeight: 8,
                activeColor: "#ee0a24",
                onChange: (val) => {
                  IBestToast.show(val.toString())
                }
              }).id('ibest_guide_slider')
            }
          }

          ListItem().height(50)
        }
        .layoutWeight(1)
        .padding({ left: 12, right: 12 })
      }
    }
    .hideTitleBar(true)
    .backgroundColor("#f5f5f5")
  }
}

API ​

@Props ​

参数说明类型默认值
data徽标内容IBestGuideItemType[][]
strictMode严格模式,当引导的元素不在屏幕内时抛出异常booleantrue
popupWidth气泡框宽度string | number300
popupHeight气泡框高度string | numberauto
popupMaxHeight气泡框最大高度string | numberauto
bgColor气泡框背景色ResourceColor#fff
popupCornerRadius气泡框圆角string | number8
buttonSpace按钮间距string | number16
messageLineHeight内容区域的行高string | number20
messageFontSize内容区域的字体大小string | number14
messageFontColor内容区域的字体颜色ResourceColor#323232
previousText上一步按钮的文字ResourceStr上一步
nextText下一步按钮的文字ResourceStr下一步
completeText完成按钮的文字ResourceStr完成
controller引导控制器IBestGuideController-

插槽 ​

插槽名说明类型
defaultBuilder默认内容的插槽CustomBuilder

IBestGuideController API ​

方法名说明参数
prev上一步-
next下一步-
close关闭-
